About this item

• This is power recliner rmt non-universal motor model R8123 R812301156333 actuator replacement with 2 cables. The rmt R8123 comes in many models, and the parameters of these motors are not all the same, please check if this motor model is the same as yours
• With 2 Cables, 2 pin flat round power transformer connection and 5 pin hand control plug connection. This motor has two cables so it cannot replace a motor with three cables
• The motor can replace R812331156333, can not replace other motors, such as R8123C2040333, R8123D2040333, R812321156204, R812322039333, R81232039333 R811202500323, R8123K2S40333, JLDQ.11.156.333K, JLDQ.11.156.333D and JLDQ.12.157.333K. Some models may differ by only a few digits but are completely different products
• The sofa frame imposes strict requirements on motors, including their minimum installation dimensions, stroke, and plug types. Check Label and also troubleshoot the switch or power supply before ordering a motor

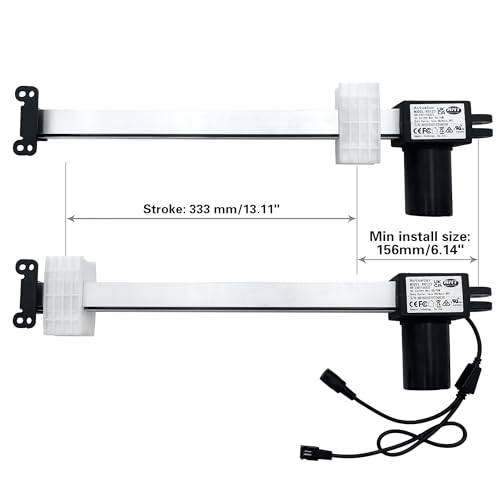

• Stroke: 333 mm/13.11 inches, move with slide block, minimum install dimension: 156 mm/6.14 inches, if your measurement error exceeds 3mm, it cannot replace the original motor. Please measure the stroke and minimum installation distance of the original motor before purchasing
