About this item

• New PRESSURE WASHER PUMP fits Honda Excell XR2500 XR2600 XC2600 EXHA2425 XR2625

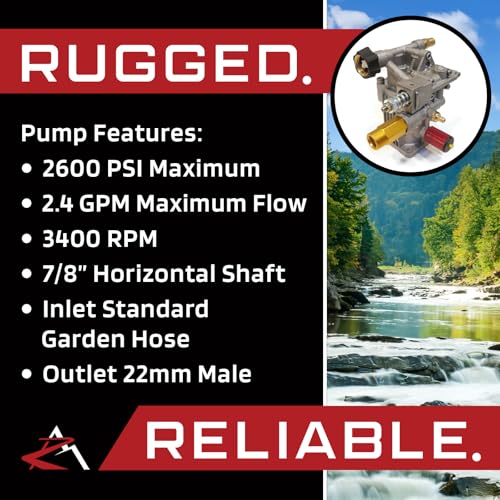

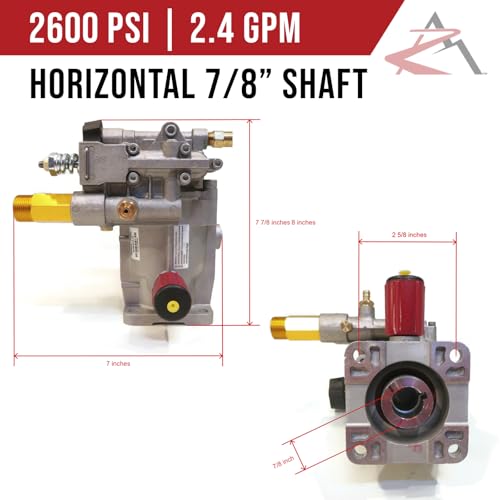

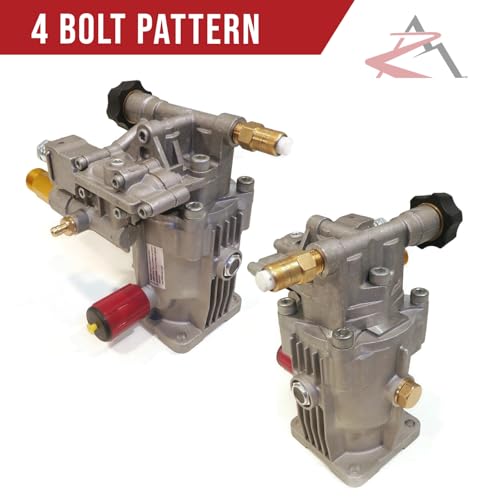

• Specs - Maximum Pressure: 2600 PSI. Maximum Flow: 2.4 GPM. Maximum Pump Speed: 3400 RPM. Shaft Diameter: 7/8" Hollow Short Shaft. Bolt Pattern: 2 5/8" Center to Center & 1 7/8" Center to Each Outer Hole. Maximum Horsepower: 6.5 GHP. Maximum Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Oil Capacity: 75 mls (2.5 oz). Keyway Width: 3/16". Keyway Length: 1 1/8". Refer to images 2 & 3 for more information

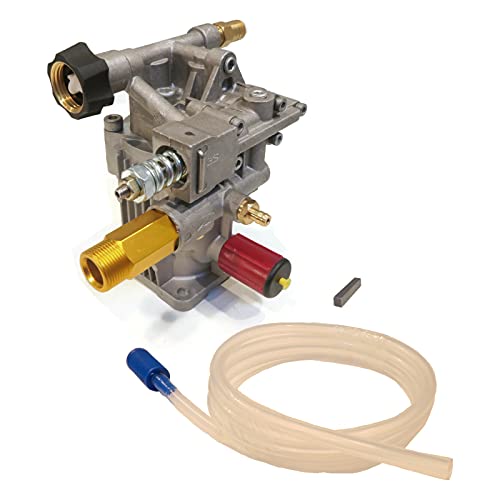

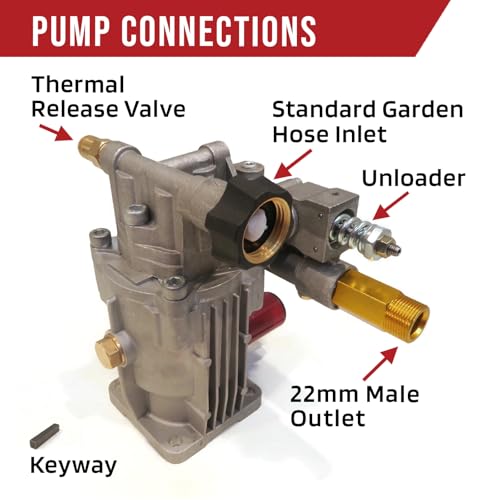

• Includes - (1) Horizontal Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, Outlet Tube, Oil Cap, Hose & Keyway; comes as shown in the first image
• This pump mounts horizontal (oil cap points up). Pump needs at least 5HP to handle PSI. Pump head cannot be flipped. Thermal relief valve comes pre-installed. Brass outlet tube MUST be removed if quick-connect is being used
• Uses 75 mls (2.5 oz) of 85W-90 gear oil (NOT included). Has a sight glass to view oil level and a drain plug for a simplified oil changing process

Kit includes: -308418003 Pump -678169004 Thermal Relief Valve SPECS: -7/8" Hollow Shaft -Horizontal Triplex Plunger Pump -2600 PSI -2.4 Gallons Per Minute -Aluminum -22mm Male Outlet -Pre-Filled with oil -Mounting Bolts are 2-5/8" between centers -This Pump is used on the following models: PS80903A, PS80903B
